국제해사기구(IMO) 선박연료유 사용정보의무보고제도(DCS) : International Maritime Organization Data Collection System, IMO DCS
국제해사기구(IMO)는 국제 해운의 온실가스(GHG) 배출량 감축방안 수립에 필요한 기초 Data 수집 및 배출현황 분석을 위해 선박연료유 사용정보의무보고제도(DCS) 도입
시행 근거
해양오염 방지협약(MARPOL Annex Ⅵ, Reg.22A) : 총톤수 5,000톤 이상 국제항해선박을 대상으로 연료유 사용량, 운항정보 등 수집
세부 내용
- 2018년 12월 31일까지 SEEMP Part Ⅱ를 기국(주관청)에서 승인 받아 선박에 비치
- 해운사는 연간 유종별 사용량, 운항거리, 운행시간 등 상세 Data를 주관청에 제출
- 주관청(또는 Recognized Organization, 이하 RO)은 해운사가 보고한 Data를 검증한 후 적합증서(SOC)발행 및 IMO에 Data 제출

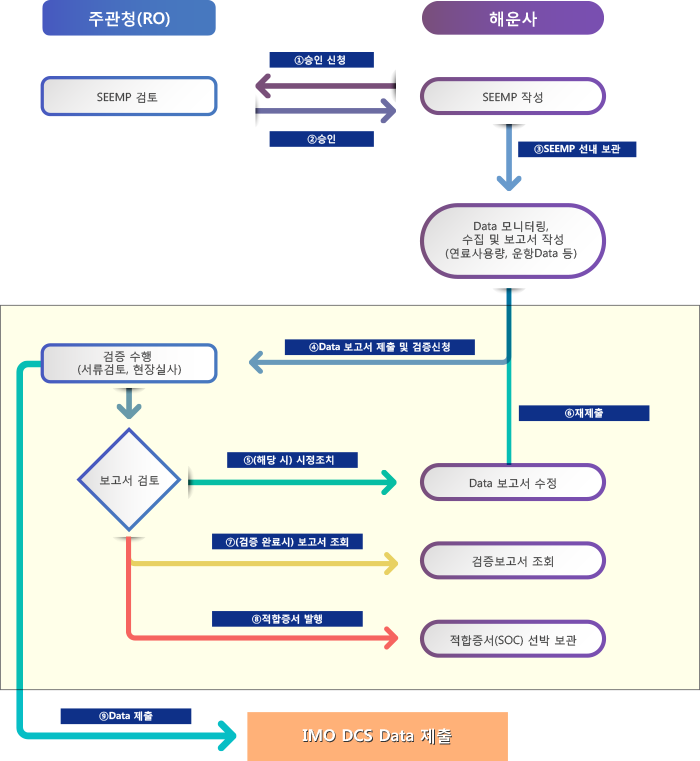

업무 흐름도
선박 대기오염물질 관리시스템을 통하여 처리하는 업무
국제해사기구 선박연료유 사용정보의무보고제도(IMO DCS)에서 주관청 또는 주관청이 지정한 기관(RO)와 해운사가 수행하는 업무입니다.
해운사는 선박에너지효율관리계획서(이하 SEEMP)를 작성하여 주관청에 승인받아 선박에 비치하고SEEMP에 따라 연료사용량, 운항Data 등을 모니터링, Data를 수집하여 선박 대기오염물질 관리시스템(이하 시스템)에서 Data보고서를 작성하여 검증기관에 검증을 신청합니다.
검증과정에서 시정조치 요구사항 발생 시 시스템을 통하여 확인하고 Data보고서를 수정하여 재제출합니다. 검증완료 후 검증보고서를 조회하여 확인합니다.
적합증서가 오프라인으로 접수되면 이를 선박에 보관합니다.
주관청은 해운사에서 작성한 SEEMP를 검토하여 승인하고 시스템을 통하여 Data 보고 대상을 설정합니다.
주관청 또는 주관청이 지정한 기관(RO)가 시스템을 통하여 해운사의 Data보고서 검증 신청을 접수하고 Data 보고서 검토 및 현장실사를 통해 검증을 수행합니다.
검증과정에서 수정사항이 발생하면 시스템을 통하여 해운사에 시정조치를 요구하고 해운사가 재제출한 Data보고서를 검증완료 후 검증보고서를 시스템에 등록합니다.
주관청은 검증을 받은 해운사에게 적합증서(Statement of Compliance, SOC)를 발행하여 오프라인으로 송부하고 해운사의 IMO 선박연료유 사용정보 Data를 시스템에서 다운로드받아 국제해사기구(IMO)에 전자적 방식으로 제출합니다.

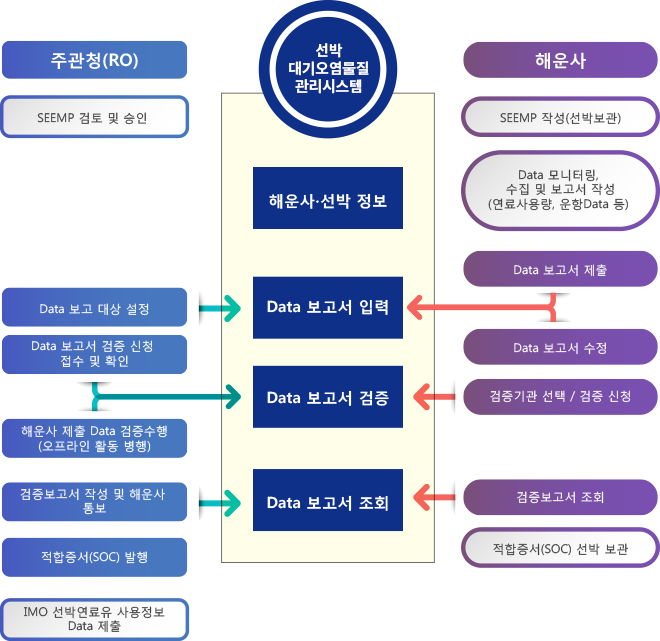

기관별 업무
선박 대기오염물질 관리시스템을 통하여 처리하는 업무
- 주관청(SEEMP 검토 및 승인)
- Data 보고 대상 설정 (Data 보고서 입력에 해당함)
- Data 보고서 검증 신청 접수 및 확인, 해운사 제출 Data 검증수행 (Data 보고서 검증에 해당함)
- 검증보고서 작성 및 해운사 통보 (Data 보고서 조회에 해당함)
- 적합증서(SOC) 발행
- 마지막으로 IMO 선박연료유 사용정보 Data 제출
- 해운사(SEEMP 작성 및 선박보관 / Data 모니터링, 수집 및 보고서 작성(연료사용량, 운항Data 등))
- Data 보고서제출, Data 보고서 수정 (Data 보고서 입력에 해당함)
- 검증기관 선택 / 검증 신청 (Data 보고서 검증에 해당함)
- 검증보고서 조회 (Data 보고서 조회에 해당함)
- 마지막으로 적합증서(SOC) 선박 보관
해운사 제출 양식 4종

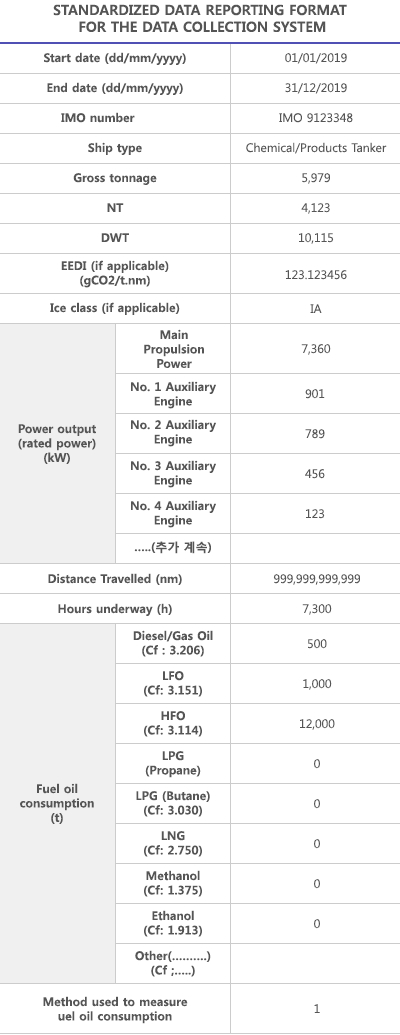

- IMO Data Report

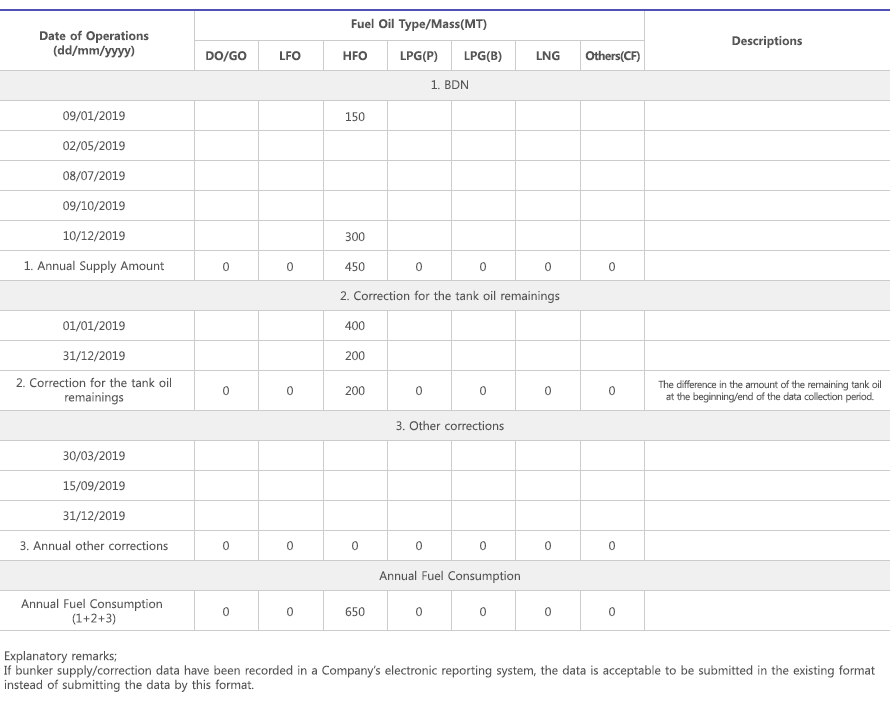

- BDN Summaries

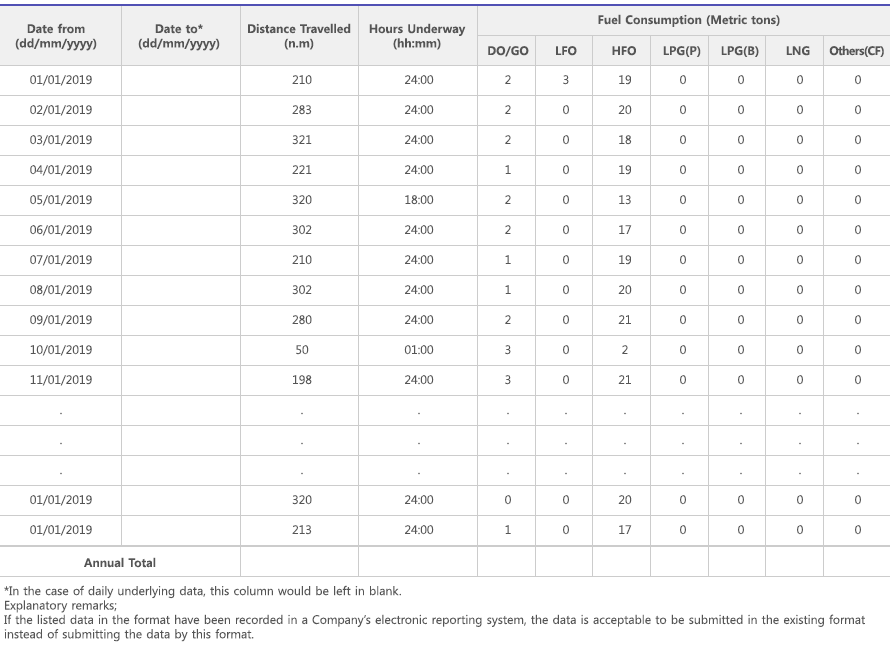

- Collected Data Summaries
- PART II OF THE SEEMP
-
SAMPLE FORM OF SHIP FUEL OIL CONSUMPTION DATA COLLECTION PLAN
(PART II OF THE SEEMP)1.Ship particularsShip particulars Name of ship IMO number Company Flag Ship type Gross tonnage NT DWT EEDI(if applicable) Ice class 2. Record of revision of Fuel Oil Consumption Data Collection PlanRecord of revision of Fuel Oil Consumption Data Collection Plan Date of revision Revised provision 3. Ship engines and other fuel oil consumers and fuel oil types usedShip engines and other fuel oil consumers and fuel oil types used Engines or other fuel oil consumers Power Fuel oil type 1 Type/model of main engine (kW) 2 Type/model of auxiliary engine (kW) 3 Boiler (...) 4 Inert gas generator (...) 4. Emission factorCF is a non-dimensional conversion factor between fuel oil consumption and CO2 emission in the 2014 Guidelines on the method of calculation of the attained Energy Efficiency Design Index (EEDI) for new ships (resolution MEPC.245(66)), as amended. The annual total amount of CO2 is calculated by multiplying annual fuel oil consumption and CF for the type of fuel.Emission factor Fuel oil Type CF
(t-CO2 / t-Fuel)Diesel/Gas oil (e.g. ISO 8217 grades DMX through DMB) 3.206 Light fuel oil (LFO) (e.g. ISO 8217 grades RMA through RMD) 3.151 Heavy fuel oil (HFO) (e.g. ISO 8217 grades RME through RMK) 3.114 Liquefied petroleum gas (LPG) (Propane) 3.000 Liquefied petroleum gas (LPG) (Butane) 3.030 Liquefied natural gas (LNG) 2.750 Methanol 1.375 Ethanol 1.913 Other (........) 5. Method to measure fuel oil consumptionThe applied method for measurement for this ship is given below. The description explains the procedure for measuring data and calculating annual values, measurement equipment involved, etc.Method to measure fuel oil consumption Method Description 6. Method to measure distance travelledMethod to measure distance travelled Description 7. Method to measure hours underwayMethod to measure hours underway Description 8. Processes that will be used to report the data to the AdministrationProcesses that will be used to report the data to the Administration Description 9. Data qualityData quality Description
