International Maritime Organization (IMO) Data Collection System (DCS) : International Maritime Organization Data Collection System, IMO DCS

International Maritime Organization (IMO) implemented the Data Collection System (DCS) for the basic data collection and emission status analysis that is necessary for establishing greenhouse gas emission reduction plan for international marine transportation

Implementation Basis

Marine Pollution Treaty (MARPOL Annex Ⅵ, Reg.22A) : Collects the fuel oil usage and ship service information of the international ships with total tonnage over 5,000 tons.

Detailed Contents

  • Receive authorization for SEEMP Part II from the responsible organization (RO) until December 31, 2018 and then keep in the vessel.
  • Shipping enterprise shall submit detailed data to RO including annual usage per oil type, shipping service distance, shipping service duration, etc.
  • RO shall verify the data reported by the shipping enterprise, then issue Statement of Compliance (SOC) and submit to the IMO data.

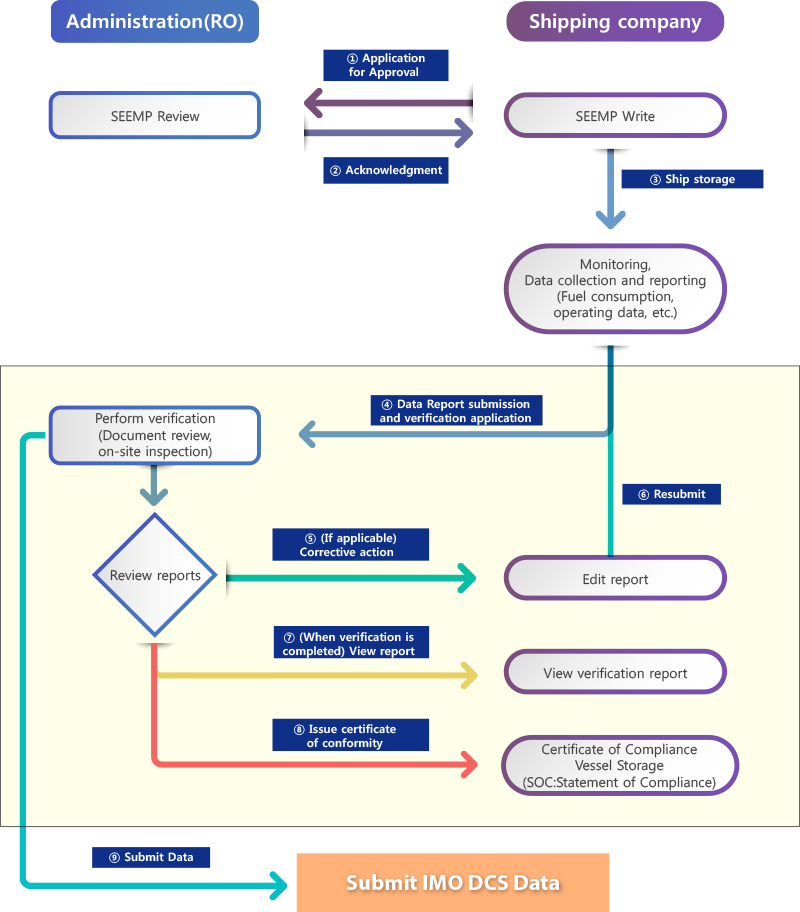

Work Flow

Tasks done through Ship Emission Management System
Work Flow

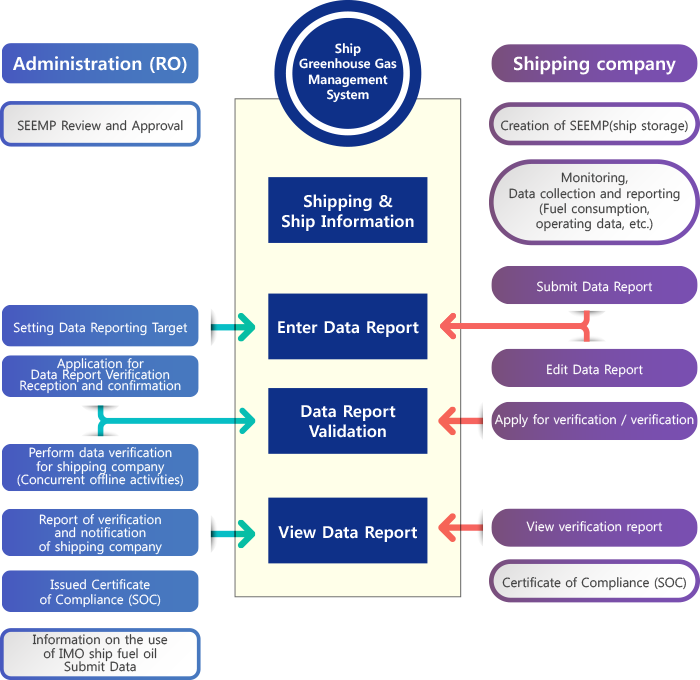

Tasks of Each Organization

Tasks done through Ship Emission Management System
Tasks of Each Organization

Attachment – Shipping Company Submitting Document Sample 4

IMO Data Report
IMO Data Report
BDN Summaries
IMO Data Report
Collected Data Summaries
IMO Data Report
PART II OF THE SEEMP
SAMPLE FORM OF SHIP FUEL OIL CONSUMPTION DATA COLLECTION PLAN
(PART II OF THE SEEMP)
1.Ship particulars
Ship particulars
Name of ship
IMO number
Company
Flag
Ship type
Gross tonnage
NT
DWT
EEDI(if applicable)
Ice class

2. Record of revision of Fuel Oil Consumption Data Collection Plan
Record of revision of Fuel Oil Consumption Data Collection Plan
Date of revision Revised provision
3. Ship engines and other fuel oil consumers and fuel oil types used
Ship engines and other fuel oil consumers and fuel oil types used
Engines or other fuel oil consumers Power Fuel oil type
1 Type/model of main engine (kW)
2 Type/model of auxiliary engine (kW)
3 Boiler (...)
4 Inert gas generator (...)
4. Emission factor
CF is a non-dimensional conversion factor between fuel oil consumption and CO2 emission in the 2014 Guidelines on the method of calculation of the attained Energy Efficiency Design Index (EEDI) for new ships (resolution MEPC.245(66)), as amended. The annual total amount of CO2 is calculated by multiplying annual fuel oil consumption and CF for the type of fuel.
Emission factor
Fuel oil Type CF
(t-CO2 / t-Fuel)
Diesel/Gas oil (e.g. ISO 8217 grades DMX through DMB) 3.206
Light fuel oil (LFO) (e.g. ISO 8217 grades RMA through RMD) 3.151
Heavy fuel oil (HFO) (e.g. ISO 8217 grades RME through RMK) 3.114
Liquefied petroleum gas (LPG) (Propane) 3.000
Liquefied petroleum gas (LPG) (Butane) 3.030
Liquefied natural gas (LNG) 2.750
Methanol 1.375
Ethanol 1.913
Other (........)
5. Method to measure fuel oil consumption
The applied method for measurement for this ship is given below. The description explains the procedure for measuring data and calculating annual values, measurement equipment involved, etc.
Method to measure fuel oil consumption
Method Description
6. Method to measure distance travelled
Method to measure distance travelled
Description
7. Method to measure hours underway
Method to measure hours underway
Description
8. Processes that will be used to report the data to the Administration
Processes that will be used to report the data to the Administration
Description
9. Data quality
Data quality
Description
